Six spindle motor segment core winding Machine JY0690
Range of use
Full auto brushless motor segment core winding machine. Mainly for small power servo motor segment,40# 60#,80# and 90# tooth winding.

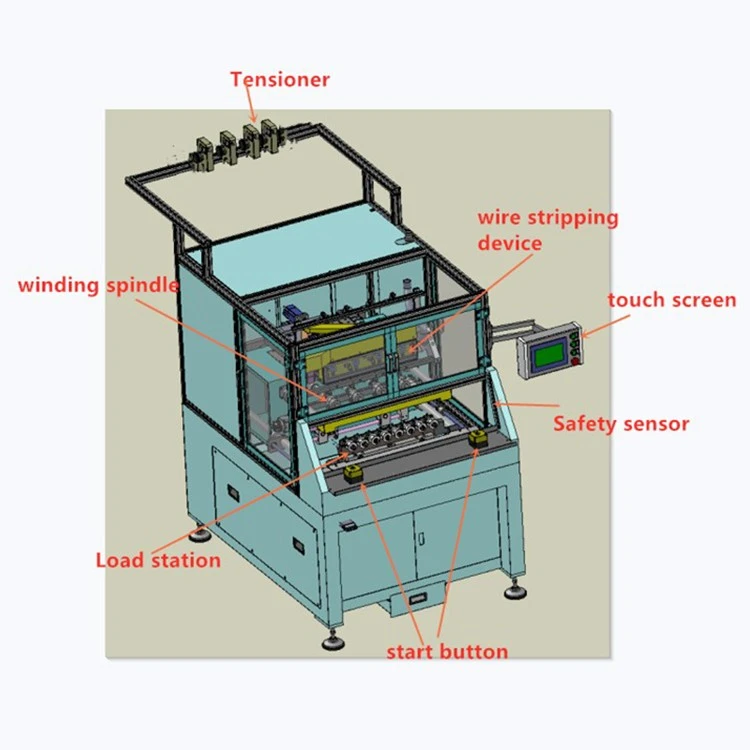

Main function
- Manual load segments or bobbin on the fixture on the load pallet station.
-Fixture with segment or bobbin auto load to machine spindle.
-Auto tailstock, auto fix leader wires on the tooling bobbin pins, auto winding, auto traversing, auto wire cut and clamp. Auto cross bridge wire if for segment combined winding.
-Fast exchange toolings and programs
-Open type program mode in the HMI, Operator could edit new program in the HMI .Different winding group only need to change the fixtures and programs saved in the HMI.
- Safety door sensors and area security sensors to protect operator.
-Special long Y axis width, special for segment combined winding.
- Auto vacuum cleaner to suck out dusty when wire stripping.
- Customized for 2-3 segment combined winding.
Technical specification
|
Type of main box |
Fixed |
|
No.of spindle |
6 |
|
Convolution width |
<φ85mm |
|
Wire size range |
0.02-1.2mm(need different tensioners) |
|
Traversing width |
≤150mm |
|
Spindle distance |
90mm |
|
Power of main motor |
Servo motor 3000W |
|
Spindle position accuracy |
≤±0.36° |
|
Spindle speed |
0-3000rpm |
|
Power of 3D motor |
Servo motor 400W |
|
3D movement width |
X≤100mm;Y≤150mm;Z≤150mm |
|
Movement speed |
≤100mm/s |
|
Nozzle position |
90° |
|
Re-position accuracy |
≤±0.001mm |
|
Power supply |
AC 220V,50Hz |
|
Air source |
0.5-0.6 MPa |
|
Dimension |
2000mm(L)×1100mm(W)×1800mm(H) |
|
weight |
800KGS |
Optional device
-Fixture fast exchange device, electric servo tensioner, auto taping device
Leader wire peeling device. HMI in English operation language.
