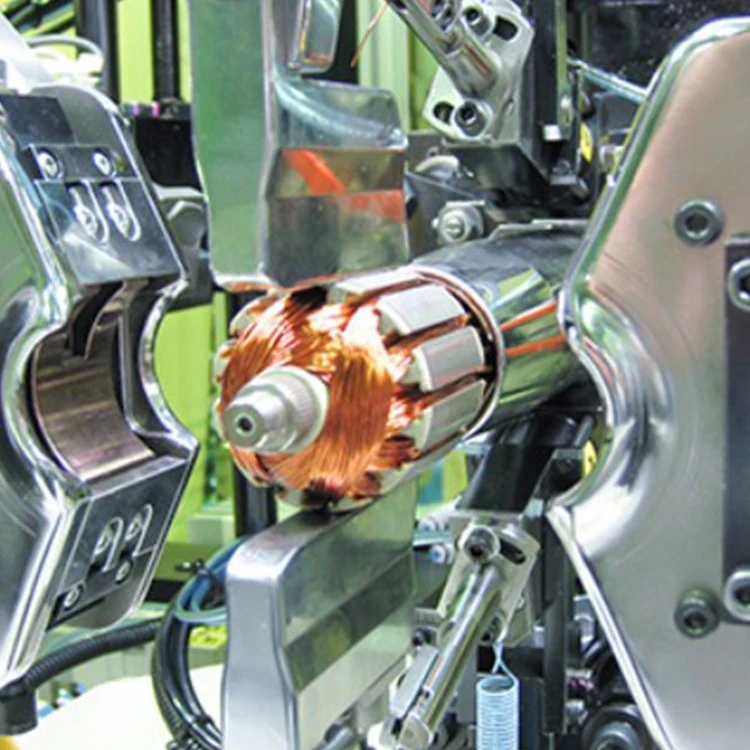

Armature winding machine JY-QDJC
Range of use
Armature winding machine, double flyer winding machine. Various kind of DC motor armature with commutator, such as automobile seat motor, window motor, wiper motor, oil pump motor ,power tool motor armature and other universal motors armature..
Main function
-Armature manual load/unload, auto flyer winding, auto hooking, armature auto division,, auto wire cut and clamp.
-Different type of armature winding: only need to change the fixtures and saved programs.
Technical specification
|
Winding station |
1 |
|
Wire size range |
0.15-1.2mm |
|
Armature OD |
20mm-90mm |
|
Commutator OD |
8mm-50mm |
|
Max stack height |
130mm |
|
Winding speed |
0-2000rpm |
|
Parameters |
99 group |
|
Air source |
0.5-0.6 Mpa |
|
Gross weight |
800KG |
|
Machine diameter |
1550mm(L)*1000mm(W)*1650mm(H) |
Machine working video link
