Winding machine parts-Electric tensioner
Main specification

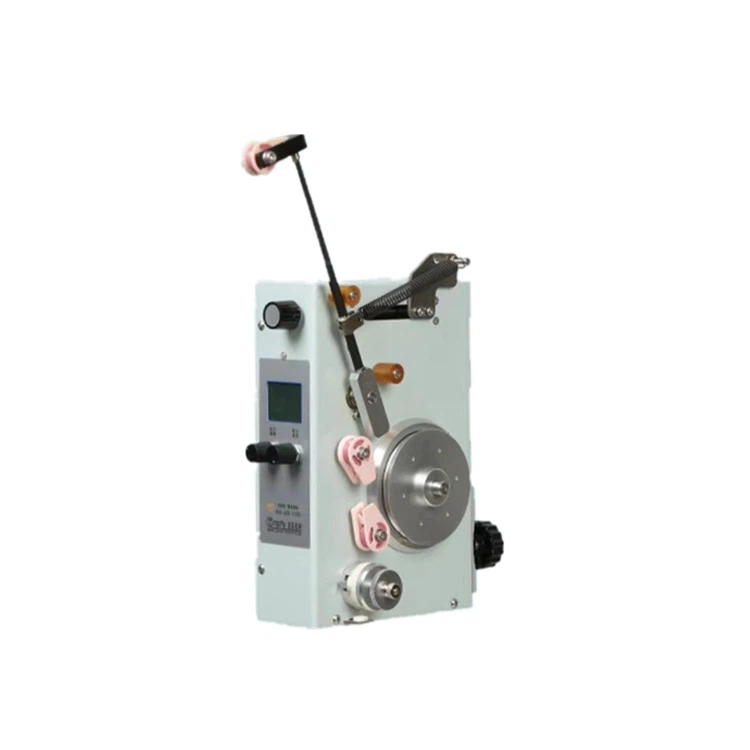

Winding machine electric tensioner. Tension of the MET tensioner is generated using hysteresis brake and a built-in control circuit. Its tensioning mechanism runs without any mechanical contact braking system, resulting in minimal friction from the connecting bearing. This provides a smooth, stable and consistent tension even in even high-speed winding.
- Two tensions' settings for different stages of winding requirements
- Dual LED digital display, real-time reference value display
- Built-in wire breakage detection switch
MET-F Model Selection
|
Model No. |
Tension Range(g) |
Suitable Wire Size(mm) |
Tension Setting |
Dimension(mm) |
Weight(kg) |
|
MET-F500 |
50~500 |
0.07~0.30 |
Two Tension Setting |
250*200*92 |
2.7 |
|
MET-F1000 |
100~1000 |
0.10~0.45 |
Two Tension Setting |
250*200*92 |
2.7 |
|
MET-F2000 |
200~2000 |
0.15~0.65 |
Two Tension Setting |
250*200*92 |
3.0 |
|
MET-F3000 |
300~3000 |
0.20~0.80 |
Two Tension Setting |
260*220*95 |
3.5 |
|
MET-F5000 |
300~3000 |
0.50~1.50 |
Two Tension Setting |
300*250*95 |
4.5 |
FAQ
